Product Overview：
The swllift vertical mast lifts is a zero-emission, very compact machine with a lightweight design that allows for low ground pressure and ground loads, and a horizontally extended work platform that extends forward reach and provides outstanding crossing capability. The key requirements of having a small footprint and being able to be transported by passenger elevators, in addition to being extremely maneuverable, make them ideal for facility maintenance applications. vertical mast lifts is very easy to maintain, has a low total cost of ownership and can be used in tight Spaces.
vertical mast lifts is a kind of aerial work platform suitable for a variety of occasions, flexible small structure and nearly a week of body rotation, so that it can cross many obstacles to the platform to the designated working position, breaking the traditional scissor platform can only be lifted vertically.
swllift vertical mast lifts commonly used places for warehouses, airports, orchards, stadiums, warehouse equipment is more dense, there are many obstacles, and the flexibility of the lifting platform requirements.
Advantages & Features：
1.vertical mast lifts is an economical solution to help reduce project costs
2. Turn off the vehicle for continuous operation
3. No need to wait for scaffolding erection or removal
4.swllift vertical mast lifts can move quickly on the construction site
5. Drive in the lifting position and can move without stowing the vehicle
6. Save time and improve work efficiency
7. Reduce manpower requirements
8. Helps meet tight deadlines and tight budgets
Hot Tags: vertical mast lifts, China vertical mast lifts manufacturers, suppliers, factory, vertical mast lifts, driveable vertical mast lift, electric mast lift, ce certificated vertical mast lift, swllift electric mast boom lift
Product Parameters：
| Model | SM3.6 | SM4.8 | SM6.0 |
| Max. Working Height | 5.6m | 6.8m | 8.0m |
| Max. Platform Height | 3.6m | 4.8m | 6.0m |
| Loading Capacity | 227kg | 227kg | 159kg |
| Ext. Platform Capacity | 114kg | 114kg | 114kg |
| Machine Dimension | 1.36*0.76*1.7m | 1.36*0.76*1.98m | 1.36*0.82*1.98m |
| Platform Size | 1.3*0.7*1.1m | 1.3*0.7*1.1m | 1.3*0.7*1.1m |
| Ext. Platform Length | 0.51m | 0.51m | 0.51m |
| Wheelbase | 1.04m | 1.04m | 1.04m |
| Lifting Motor | 24V DC/1.3KW | 24V DC/1.3KW | 24V DC/1.3KW |
| Drive Motor | 2X24V DC/0.5KW | 2X24V DC/0.5KW | 2X24V DC/0.5KW |
| Drive Speed-stowed | 4km/h | 4km/h | 4km/h |
| Drive Speed-raised | 1.1km/h | 1.1km/h | 1.1km/h |
| Up/Down Speed | 31/32 sec | 41.5/42 sec | 52/53 sec |
| Gradeability | 0.25 | 0.25 | 0.25 |
| Max. Working Angle | 1.5° | 1.5° | 2° |
| Battery | 2*12V/100Ah | 2*12V/100Ah | 2*12V/100Ah |
| Charger | 24V/15A | 24V/15A | 24V/15A |
| Tire | Φ305*100mm | Φ305*100mm | Φ305*100mm |
| Weight | 810kg | 980kg | 1060kg |

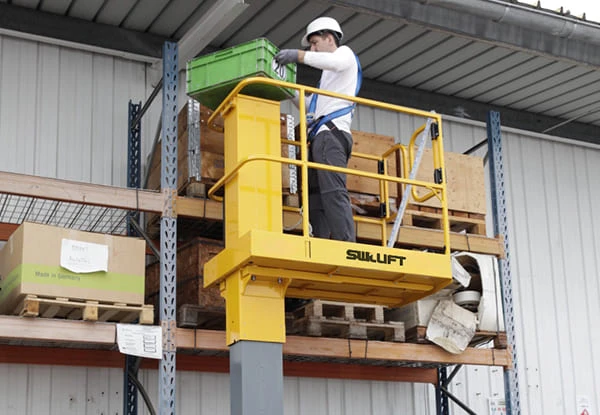

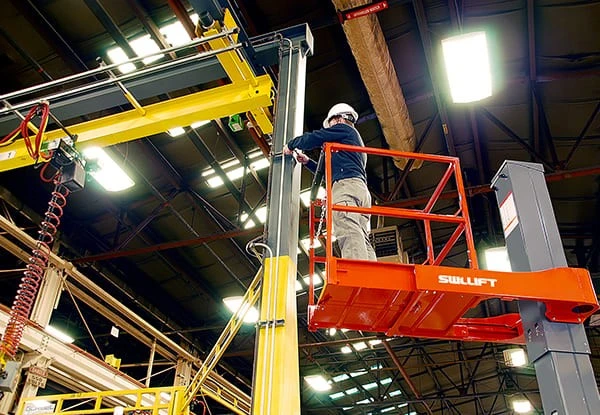

Construction Cases：
Why Choose Us?
We offer a diverse range of lifting equipment to suit different needs and applications. Whether you need boom lift, scissor lift, spider lift or other lifting solutions, SWLLift has a comprehensive selection. Our products are designed to handle varying load capacities and adapt to different work environments.
At SWLLift, customer satisfaction is our number one goal. We strive to provide exceptional products and services and always listen to our customers' feedback. Our goal is to build long-term partnerships with our customers and ensure their success in the lifting field.
FAQ
1.Do you provide OEM service?
Of course, we support OEM co-operation in order to manufacture according to your requirements.
2.How long does it take to ship?
Shipping time depends on the specific product type and order quantity, and is usually completed within 2 to 4 weeks after order confirmation.
3.What kind of after-sales service do you provide?
We provide detailed user manuals to help you use and maintain the products correctly.
4.What kind of quality assurance do you provide?
Our products are ISO:9001 quality certified and CE certified to ensure that they meet international quality standards.
5.What countries do we export our products to?
Our products are exported to many regions such as Asia, Middle East, Europe, Africa, South America and Oceania.
6.What are the payment methods?
We accept a variety of payment methods, including T/T, L/C, D/P, D/A, MoneyGram, credit card, PayPal, Western Union, cash and so on.
7.What are the payment methods?
FOB, CFR, CIFEXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, express delivery, DAF, DES, etc.
8.How long is the machine warranty?
We offer a one year machine warranty.
9.Do you have your own distributors?
Yes, we have our own dealer network. If you are interested, please feel free to contact us for more information on dealer co-operation.
