Pickup Crane
Your Professional Pickup Crane Supplier
As a leading lifting equipment manufacturer in China, Henan SWLLIFT Intelligent Equipment Co., Ltd. specializes in the design, manufacture and sale of all types of aerial work, material lifting and material handling equipment. The company's product range is extensive, covering seven series of aerial work platforms, including straight boom, articulated, scissor, spider, telescopic, mast and vehicle-mounted, as well as material lifting equipment such as spider cranes, micro crawler cranes, truck cranes, and material handling equipment such as forklifts and pickers.
Extensive Experience
As a leading manufacturer with over 30 years of industry experience and more than a decade of export expertise, we bring deep knowledge and reliability to every project.
Robust Production Capacity
Our facility is equipped with over 20 production lines, enabling an annual output of more than 5,000 high-quality aerial work platforms to meet global demand efficiently.
Dedicated Professional Team
We employ over 500 skilled professionals, all of whom are committed to delivering superior product quality and customer service through their expertise and dedication.
OEM & ODM Services Available
Our factory offers customized one-stop solutions for lifting equipment, supporting both original equipment manufacturing (OEM) and original design manufacturing (ODM) options.
Parameter
|
Model |
LDCA-1000 |
Boost Speed |
3.7M/min |
|
Lift weight |
1000KG |
Arm length |
1.55M |
|
Lift height |
1950MM |
Rotation angle |
360 |
|
Wire rope diameter |
4.8mm |
Wire rope length |
4.5M |
|
Power requirements |
12V/24V/220V optional |
Base size |
250mm*250mm*18mm |
Types of Pickup Crane
The pickup cranes produced by our company mainly include the following types:

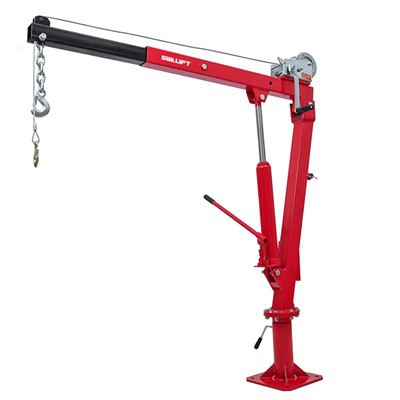

Electric Pickup Crane
Electric pickup crane is a crane mounted on a pickup truck that is powered by electricity. These cranes are used for lifting and moving heavy objects, often in situations where a full-sized crane is not needed or practical.
Pickup Crane With Winch
Pickup crane with winch is specially designed for carrying vehicles, it and the traditional crane base has a great difference, the traditional crane base is mostly used in the round steel structure of the large base.

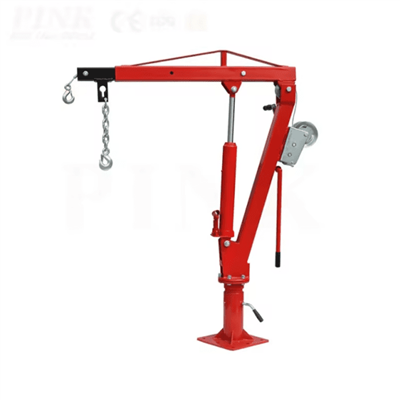

Portable Pickup Truck Crane
Portable pickup truck crane boom can be rotated 360 degrees, boom amplitude, boom extension, folded at will, disassembly and assembly with, quick installation, simplify the structure, reduce the volume, easy to understand the operation.
Advantages of Pickup Crane
Versatility and Mobility
One of the biggest advantages of pickup cranes is their mobility. Unlike fixed cranes, pickup cranes can easily move between job sites, making them an ideal choice for contractors who manage multiple projects or work in various locations. This flexibility saves time and effort since the crane can travel on regular roads, eliminating the need for specialized transport.
Time and Cost Efficiency
Pickup cranes help save both by reducing the need for multiple pieces of equipment. Instead of renting or purchasing several machines for lifting, transporting, and setting materials, a single pickup crane can perform all these tasks. This not only cuts down on equipment costs but also simplifies project management.
Enhanced Safety Features
Safety is a critical concern on any construction site, and pickup cranes are designed with this in mind. Modern pickup cranes are equipped with advanced technology and safety systems that reduce the risk of accidents. Features like load sensors, stability controls, and precision lifting mechanisms ensure that materials are handled safely and securely.
Adaptability to Various Construction Needs
Every construction project is unique, and pickup cranes are built to adapt to different requirements. Whether you’re working on a high-rise, a bridge, or a residential project, pickup cranes can be tailored to fit the specific requirements of the job. They come in various sizes and configurations, making them suitable for both large-scale construction jobs and smaller projects.
Applications of Pickup Crane
Truck hanging has a wide range of applications in construction sites. It can be used to handle and install building materials, such as steel beams, concrete members, etc. Its mobility makes it possible to move quickly on construction sites and adapt to different operational requirements.
The crane also plays an important role in road maintenance projects. It can be used to quickly clear obstacles on roads, repair road facilities, and move materials needed for road construction.
In the process of installation and maintenance of industrial equipment, pickup cranes are often used to transport and install heavy equipment. Its flexibility and mobility make it possible to operate efficiently in small factory Spaces.
Pickup crane also has a wide range of applications in forestry and agriculture. It can be used for handling and stacking wood, agricultural products, etc., to improve production efficiency.
In the event of disasters and accidents, the crane can quickly reach the scene for handling and rescue work. Its maneuverability makes it an important piece of equipment for emergency rescue missions.
Safety Precautions for Operating a Pickup Crane
Wear appropriate clothing suitable for work. Always wear work uniforms and safety helmets.
Conduct a pre-operation inspection. If any issues are found during the inspection, repair them immediately.
Check the safety conditions around the crane before starting operations.
Check the hydraulic oil level using the oil level indicator. The oil level must be between the H and L marks. If it’s insufficient, refill the hydraulic oil.
Preheat the engine. After starting the engine, engage the PTO and let the engine run at low speed for sufficient preheating.
Fully extend the outriggers as much as possible during lifting operations. Use locking pins to secure the outriggers. If not locked, the outriggers may retract automatically.
Connect the alarm switch to the power supply before starting the crane. Keep this switch off while driving.
Avoid side-loading or dragging heavy loads on the ground as it can cause severe damage to the crane.
Do not lift loads that exceed the rated capacity to prevent damage from overloading.
Lift the load slightly off the ground first to ensure it’s safe. Test the brakes before fully lifting the load.
Monitor the boom for distortion. If the crane or chassis shifts under load, adjust the load to stabilize the crane.
Move the control levers slowly when lifting loads. Sudden movements can endanger operators and reduce crane stability.
Turn the crane boom slowly. Sudden starts or stops can cause the load to swing, damaging the crane.
Exercise caution when turning the boom from the rear to the side. The crane is more stable when the boom is at the rear, so turn slowly and observe stability.
Reduce the load when moving the boom to the front. The stability at the front is lower, so decrease the load to 25% of the truck’s unloaded capacity.
Stay focused while operating the crane. Distractions can lead to serious accidents.
Keep workers clear of the boom and load. Unauthorized personnel should not be within the crane’s operational radius.
Check for overhead obstacles around the boom and the load.
Never stand under a suspended load, and the operator should not leave the crane when a load is suspended.
Stop crane operations in poor weather conditions, such as strong winds (over 10 meters per second) or thunderstorms. Retract the boom when necessary.
Maintain hydraulic oil temperature within the allowable range (-20°C to 60°C). Stop operations if the temperature exceeds the limit to protect the hydraulic system and prevent oil degradation.
Secure the boom and hook when driving. The boom should be retracted, and the hook fastened to the hook stopper.
Lock the outriggers with pins before driving. Unlocked outriggers may extend while driving, causing accidents.
Do not move the truck with a suspended load.
Inspect the crane regularly. Perform annual and monthly inspections, replace lubricants and consumables regularly, and repair any malfunctions immediately.
Packaging and Shipping
|
Packaging |
Carton /wooden case/we can make according to customer's request |
|
Shipping |
We will help you to choose the best shipping way according to your detail requirements. By sea, by air, or by express, etc. |
Our Services
Sales and customised solutions
We provide many types and specifications of aerial work platforms for customers to choose and buy, and provide customised solutions according to customers' needs.
Installation, commissioning and on-site support
We send professional technicians to the customer's site for installation and commissioning of aerial working platforms to ensure normal operation of the equipment and provide on-site support.
Training and operation guidance
We provide comprehensive training and operation guidance to ensure that users can operate the aerial working platform correctly and safely, including operation methods, safety precautions and maintenance.
After-sales service and maintenance
We provide comprehensive after-sales service, including equipment repair, maintenance and parts replacement, to ensure the reliability and long-term use of the equipment.
Safety testing and certification
We provide safety testing and certification services for aerial working platforms to ensure that the equipment meets relevant safety standards and regulatory requirements.
24-hour emergency repair service
We provide 24-hour emergency repair service to cope with equipment failure and emergencies, to ensure the continuity and safety of customer's operation.
Our Factory
FAQ
As one of the most professional pickup crane manufacturers and suppliers in China, we're featured by quality products and low price. Please rest assured to buy high-grade pickup crane for sale here from our factory.
