Product Overview：
Swllift driveable vertical mast lift because of its use of high-strength and high-performance aviation materials, with beautiful and compact shape, small size, light weight and other characteristics. driveable vertical mast lift Safe and reliable, widely used in factories, hotels, restaurants, stations, airport theaters, exhibition halls and other places, is the maintenance of machinery, paint decoration, replacement of lamps, electrical appliances, cleaning and maintenance of the best safety companion. Mast type aerial working platform according to its shape structure and working height is divided into: One-mast driveable vertical mast lift, two-mast driveable vertical mast lift, three-mast driveable vertical mast lift, Four-mast driveable vertical mast lift and multi-mast driveable vertical mast lift. The working height usually ranges from 8 meters to 25 meters, which is especially suitable for high work in some large indoor venues.
Advantages & Features：
1. The machine weight is relatively light, good mobility, driveable vertical mast lift is suitable for single operation
2. Special guide wheel device between mast, making the machine lift smoothly and freely
3. Compact structure, small transportation size, can enter the car of the general elevator and can smoothly pass the ordinary door and narrow passage, suitable for a variety of workplaces
4. Double protection of the support leg structure, making it safer to work at altitude, and can be close to the working face for lifting operations
5. Ac/DC power supply is usually available, which is simple to use and easy to operate
6. With auxiliary manual descent safety protection system, swllift driveable vertical mast lift is equipped with emergency descent device in case of power failure
7. Safety device to prevent overload of lifting platform; Equipped with leakage protection device and phase loss protection device; A safety explosion-proof device is provided to prevent the rupture of hydraulic pipeline. Ensure the safety of operation
Hot Tags: driveable vertical mast lift, China driveable vertical mast lift manufacturers, suppliers, factory, ce certificated vertical mast lift, vertical mast lifts, driveable vertical mast lift, electric mast lift, swllift electric mast boom lift
Product Parameters：
| Model | SM3.6 | SM4.8 | SM6.0 |
| Max. Working Height | 5.6m | 6.8m | 8.0m |
| Max. Platform Height | 3.6m | 4.8m | 6.0m |
| Loading Capacity | 227kg | 227kg | 159kg |
| Ext. Platform Capacity | 114kg | 114kg | 114kg |
| Machine Dimension | 1.36*0.76*1.7m | 1.36*0.76*1.98m | 1.36*0.82*1.98m |
| Platform Size | 1.3*0.7*1.1m | 1.3*0.7*1.1m | 1.3*0.7*1.1m |
| Ext. Platform Length | 0.51m | 0.51m | 0.51m |
| Wheelbase | 1.04m | 1.04m | 1.04m |
| Lifting Motor | 24V DC/1.3KW | 24V DC/1.3KW | 24V DC/1.3KW |
| Drive Motor | 2X24V DC/0.5KW | 2X24V DC/0.5KW | 2X24V DC/0.5KW |
| Drive Speed-stowed | 4km/h | 4km/h | 4km/h |
| Drive Speed-raised | 1.1km/h | 1.1km/h | 1.1km/h |
| Up/Down Speed | 31/32 sec | 41.5/42 sec | 52/53 sec |
| Gradeability | 0.25 | 0.25 | 0.25 |
| Max. Working Angle | 1.5° | 1.5° | 2° |
| Battery | 2*12V/100Ah | 2*12V/100Ah | 2*12V/100Ah |
| Charger | 24V/15A | 24V/15A | 24V/15A |
| Tire | Φ305*100mm | Φ305*100mm | Φ305*100mm |
| Weight | 810kg | 980kg | 1060kg |

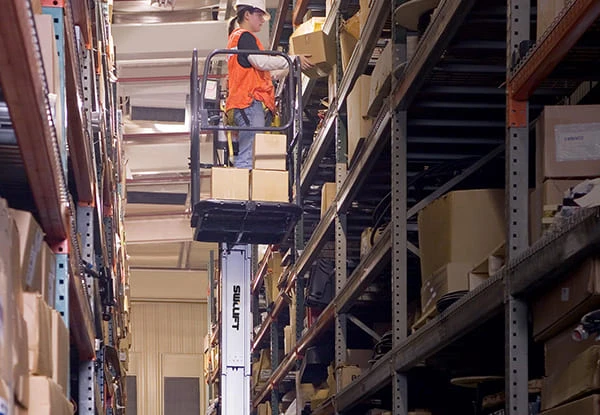

Construction Cases：
Why Choose Us?
We offer a diverse range of lifting equipment to suit different needs and applications. Whether you need boom lift, scissor lift, spider lift or other lifting solutions, SWLLift has a comprehensive selection. Our products are designed to handle varying load capacities and adapt to different work environments.
At SWLLift, customer satisfaction is our number one goal. We strive to provide exceptional products and services and always listen to our customers' feedback. Our goal is to build long-term partnerships with our customers and ensure their success in the lifting field.
FAQ
1.Do you provide OEM service?
We specialise in providing our customers with personalised OEM solutions to meet their specific market needs.
2.How long does it take to ship?
We make every effort to shorten product shipment times and offer expedited service where possible to meet your time requirements.
3.What kind of after-sales service do you provide?
When your machine has problems, we provide the service of maintenance guidance through video call.
4.What kind of quality assurance do you provide?
We adopt an advanced quality management system to monitor and track the production process of our products to ensure that every step of the process meets the quality requirements.
5.What countries do we export our products to?
Our products are sold in Asia, Middle East, Europe, Africa, South America and Oceania.
6.What are the payment methods?
We support T/T, L/C, D/PD/A, MoneyGram, credit card, PayPal, Western Union, cash and other payment methods, and we will have certain preferential policies for long-term customers.
7.What are the payment methods?
Available payment methods include FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express, DAF, DES and many more.
8.How long is the machine warranty?
Our machines are covered by a one year warranty.
9.Do you have your own distributors?
Yes, we have our own dealer network covering multiple regions.
