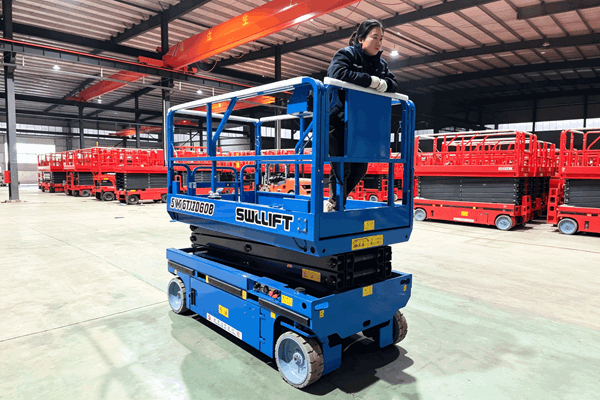

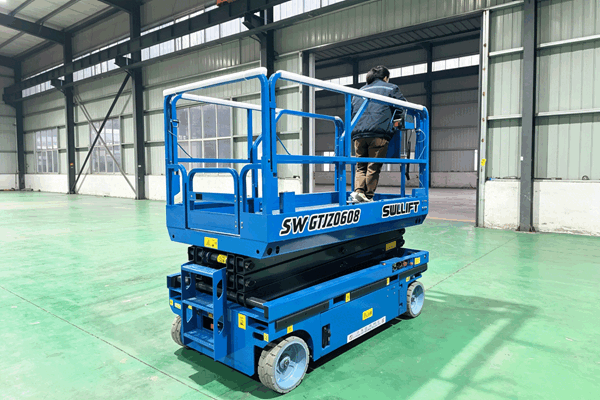

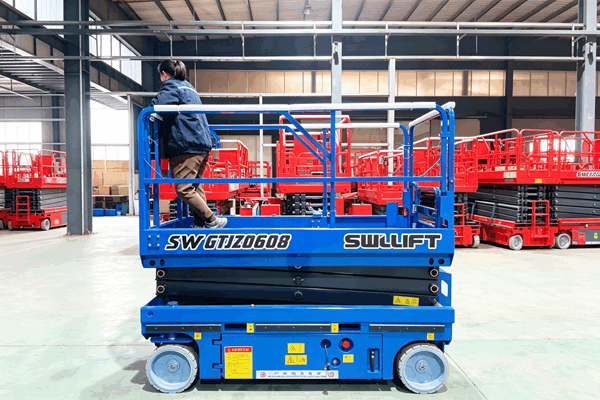

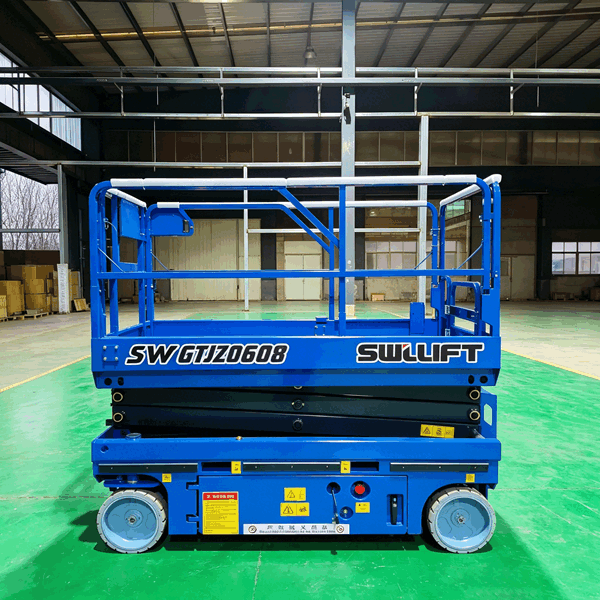

Product Overview
The scissor lift has a maximum working height of 8 meters and is suitable for indoor and outdoor maintenance, installation, and decoration. It adopts a classic scissor lift mechanical structure, equipped with a stable chassis and a high-efficiency power system, balancing load capacity and mobility. It can operate stably in various scenarios such as factories, shopping malls, airports, and construction sites. SWLLIFT has a complete sales and service system. Our factory has extensive experience and has the capability to customize equipment for customers.
Advantages and Features
This scissor lift offers even load distribution and resistance to deformation, supporting simultaneous operation by 1-2 people and the use of multiple tools. It features a retractable platform, expanding the working range. Its compact design allows easy passage through standard doorways and elevators for convenient transport. Furthermore, the lift is easy to operate and maintain, with low maintenance costs. The dual-speed drive system, coupled with solid rubber tires, leaves no tracks indoors. Additionally, an emergency manual lowering valve ensures safe platform descent in case of hydraulic system failure or engine shutdown.
Parameter Information
| Model | SWGTJZ 1214 |
| Max. Working Height | 13.8m |
| Max. Platform Height | 11.8m |
| Max. Lift capacity | 320kg |
| Lift capacity--extension deck extended | 113kg |
| Working Platform Dimensions(L×W) | 2.27×1.13m |
| Overall dimensions of the machine unfolded guardrail(L×W×H) | 2.39×1160×2.6m |
| Overall dimensions of the machine folding guardrails(L×W×H) | 2.39×1.16×2.06m |
| Slide-out platform extension deck-length | 0.9m |
| Minimum ground clearance | 106mm-29mm |
| Wheelbase | 1865mm |
| Turning radius - inside/outside | 0/2.5m |
| Lift/drive motor | DC motor 24V/4.5KW |
| Lifting speed | 3-5m/min |
| Drive speed-stowed | 3.5km/h |
| Drive speed-raised | 0.8km/h |
| Battery | 4×6V/200AH |
| Charger | 24V/30A |
| Max.climbing ability | 25% |
| Max. Working Angel | 1.5°/3° |
| Tires | 381*127mm |
| Total Weight | 2960kg |
