Product Overview：

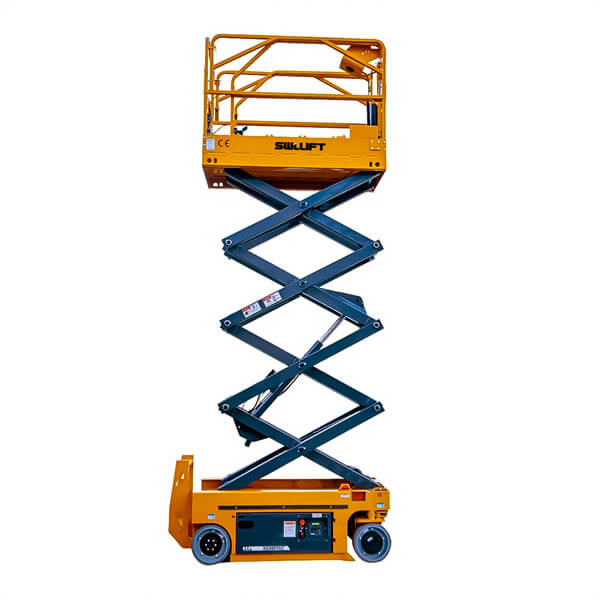

This electric mini scissor lift is a mobile scaffolding tool used for lifting personnel and materials. The platform moves up and down in a scissor-like motion via intersecting beams. This lift can only move vertically. It can be used for hanging signs, ceiling work, lighting installation and maintenance. Outdoor applications include bricklaying, tree trimming, and power line work. The platform provides a stable working surface for the operator.
Advantages & Features：
1. electric small scissor lift is light weight, good maneuverability, suitable for single person operation
2. special inter-mast guide wheel device, lifting and lowering smoothly and freely
3. compact structure, small size of transportation state, can enter the general elevator car and can pass through the doorway and narrow passages smoothly
4. double protection leg structure, work more safely, electric small scissor lift can be close to the work surface lifting and lowering operations
Hot Tags: electric small scissor lift, China electric small scissor lift manufacturers, suppliers, factory, small electric scissor lift, mini electric scissor lift, electric hydraulic scissor lift, electric scissor lift, electric rough terrain scissor lift, electric small scissor lift
Product Parameters：
| Model | SZ06N | SZ06W | SZ08N | SZ08W | SZ10W | SZ12W | SZ14W |
| Measurements | |||||||
| Max.Working HeightMax.Platform Height | 7.8m | 7.8m | 9.8m | 9.8m | 11.8m | 13.8m | 15.8m |
| Platform Dimensions | 5.8m | 5.8m | 7.8m | 7.8m | 9.8m | 11.8m | 13.8m |
| Length-stowed | 1.67X0.74x1.1m | 23x1.15x1.1m | 2.3x0.81X11m | 2.3X 1.15 x1.1m | 2.64X1.13x1.1m | ||
| Width-stowed | 1.9m | 2.45m | 2.475m | 2.475m | 2.475m | 2.475m | 2.87m |
| Height-stowed | 0.76m | 1.18m | 0.85m | 1.18m | 1.18m | 1.18m | 1.37m |
| Height -stowed | 2.18m | 2.24m | 2.36m | 2.36m | 2.48m | 2.60m | 2.87m |
| (folding quardrails)Slide-out Platform | 1.80m | 1.64m | 1.76m | 1.76m | 1.88m | 2.0m | 2.30m |
| Extension Deck | 0.9m | ||||||
| GroundClearance(center) | 0.083m | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m |
| Ground ClearancePothole Guards | 0.016m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m | 0.02m |
| Wheelbase | 1.36m | 1.92m | 1.92m | 1.92m | 1.92m | 1.92m | 2.26m |
| Weight | 1500kg | 2000kg | 2150kg | 2100kg | 2750kg | 2950kg | 3900kg |
| Productivity | |||||||
| MaxLift Capacity | 230kg | 320kg | 230kg | 320kg | 320kg | 320kg | 230kg |
| Lift capacity -Extension-Deck Extended | 113kg | ||||||
| MaxPlatform-Occupancy | 2 | ||||||
| Drive Speed-stowed | 3.5km/h | ||||||
| Drive Speed-Raised | 0.8km/h | ||||||
| Gradeability -Stowed | 25% | ||||||
| Max.WorkingAngle | 1.5°/3° | ||||||
| Turning Radius Inside/0utside | 0/1.64m | 0/2.35m | 0/2.35m | 0/2.35m | 0/2.35m | 0/2.35m | 0/2.7m |
| Lifting Speed Raise/Lower | 3-5m/min | ||||||
| Tires -Solid Non-Marking | Ф305X100mm | Ф381X127mm | |||||
| Power | |||||||
| Battery | 24V/200Ah | 24V/270Ah | |||||
| Charger | 24V/30A | ||||||

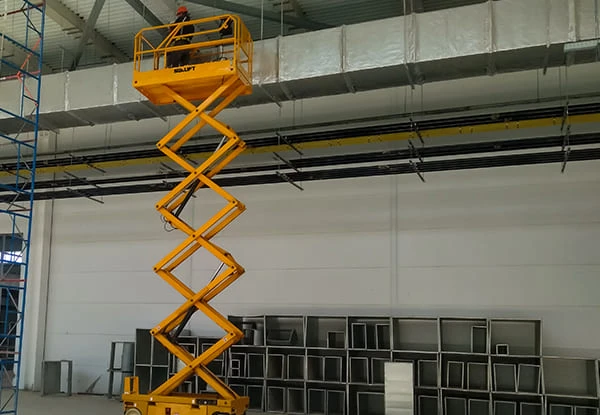

Construction Cases：
