Products Description

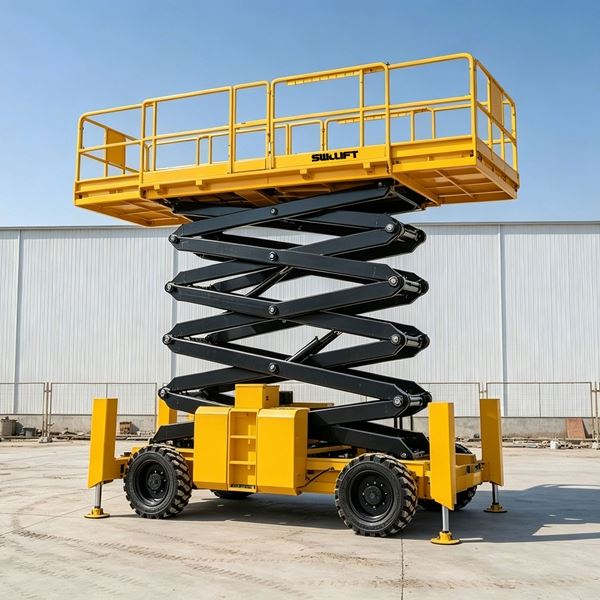

This 20m scissor lift is equipped with large-sized deep-pattern off-road tires, along with ample ground clearance. It can smoothly pass through sandy roads, muddy land, and unlevel construction sites. The 20m scissor lift is also equipped with four hydraulic automatic legs, and can complete leveling and support adjustment with just one button. Even when the ground has a slope, it can still firmly stabilize the working platform, greatly avoiding the risk of overturning during high-altitude operations. Its maximum working height can reach up to 20 meters. We can customize the working height according to your needs.
20m Scissor Lift Features
Most of the existing hydraulic scissor lifts are electric models designed for flat ground use and can only be operated on hardened and flat surfaces. However, the SWLLIFT 20m scissor lift features an off-road diesel version. Its core advantages focus on outdoor scenarios:
✅ Diesel engine, no need for charging stations, continuous construction in outdoor construction sites
✅ Four-wheel drive for off-road travel, suitable for uneven construction sites
✅ Independent hydraulic support legs, higher safety coefficient for operations on non-level ground
✅ All-weather operation, can be used normally in rainy weather and open-air areas
If your project site lacks power supply facilities and has poor road conditions, ordinary electric scissor lifts cannot be brought in. Moreover, the working height is extremely high. In such cases, this 20-meter diesel off-road scissor lift is a more suitable choice.
Product Parameters：
| Model | Z10D | Z13D | Z16D |
| Measurements | |||
| Max.Working Height | 12m | 15m | 18m |
| Max.Platform Height | 10m | 13m | 16m |
| Platform Dimensions | 3.95X1.83m | 3.95X1.83m | 3.95X1.83m |
| Length-stowed | 4.2/4.81m | 4.2/4.81m | 4.2/4.81m |
| Width-stowed | 2.28m | 2.28m | 2.28m |
| Height-stowea | 2.81m | 3.03m | 3.25m |
| Height-stowed (folding guardrails) | 2.12m | 2.34m | 2.56m |
| slide-out Platform Extension Deck-Length | 1.22/1.52m | 1.22/1.52m | 1.22/1.52m |
| Ground Clearance | 0.23m | 0.23m | 0.23m |
| Wheelbase | 2.84m | 2.84m | 2.84M |
| Weight | 6850kg | 7350kg | 8850kg |
| Productivity | |||
| Max.Lift Capacity | 1150kg | 680kg | 680kg |
| Lift capacity - Extension Deck Extended | 230kg | 230kg | 230kg |
| Max.Platform Occupancy | 7 | 5 | 5 |
| Drive Speed-Stoweo | 6.3km/h | ||
| Drive Speed-Raised | 1.1km/h | ||
| Gradeability -Stowed | 0.45 | ||
| Max.WorkingAngel | 3°/3° | ||
| Turning Radius -Inside/Outside | 2.78/4.95m | ||
| Tires - Solid Non-Marking | 33X12-20 | ||
| Engine | 4TNV94L-BXPHZ | ||
| Power | 35.5Kw/2600rpm | ||
| FuelTank Volume | 115L | ||
| Hydraulic tank volume | 170L | ||
| ControlVoltage | 12V | ||
| Standards Compliance | EN280:2013+A1:2015 GB25849-2010 | ||

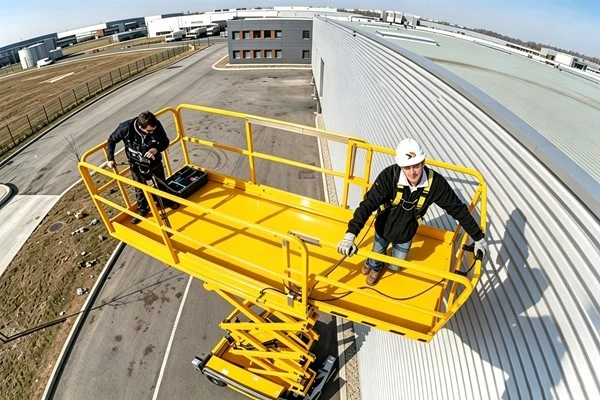

Construction Cases
FAQ
Q1: Can diesel off-road scissor lifts be used inside paved factory areas?
A: Yes. They can operate on flat cement surfaces and factory roads, provided there is sufficient space. For long-term indoor use in enclosed environments, we also offer an electric off-road version of the same height as an alternative.
Q2: Which countries can the equipment be exported to, and are certifications complete?
A: The machine comes with CE certification, enabling export to most regions including Europe, Africa, Southeast Asia, and the Middle East. We can provide corresponding certificates, nameplates, and user manuals based on your target market.
