Products Overview

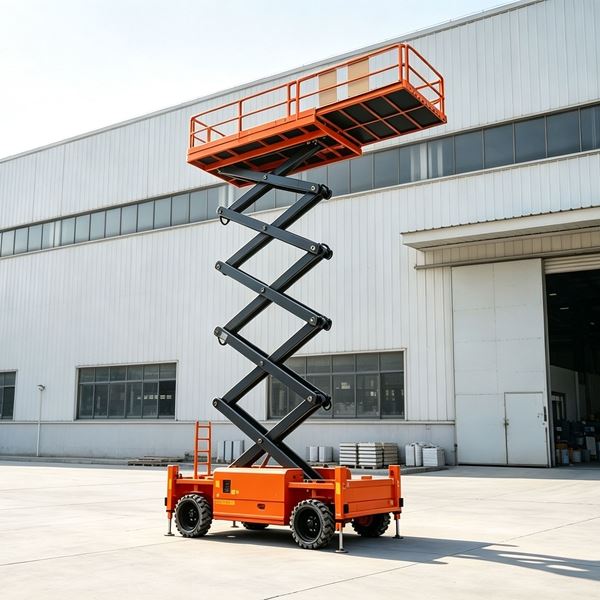

In modern construction, for large-scale factory building and complex outdoor maintenance projects, efficiency and safety in elevated work remain top priorities for contractors. This diesel scissor lift extended platform meets demanding operational requirements with its high-performance diesel engine. This enables reliable operation even in environments without access to power supply.
To address the limitations of limited horizontal reach and crowded placement of personnel and materials on conventional lifts, this model features a high-strength extendable platform. Equipped with four-point hydraulic auto-leveling outriggers, the scissor lift extended platform ensures absolute stability while significantly expanding the working area at height. The scissor lift extended platform is an ideal solution for steel structure assembly, curtain wall installation, pipeline laying, and maintenance of large equipment.
Core Product Features
1. Extendable Platform
One of the key highlights of this scissor lift extended platform is its extendable platform design. Based on the standard working platform, operators can easily slide and lock an extension sub-platform into place, instantly increasing the total working area at height. Workers can bring their tools along when ascending, saving time that would otherwise be spent going up and down to switch tools.
The extendable platform also allows workers to overcome fixed ground obstacles-such as pipelines, green belts, or low-rise structures-without needing frequent lifting or repositioning of the chassis, significantly improving efficiency in high-altitude construction.
2. Powerful Diesel Power
This diesel scissor lift extended platform is equipped with a high-output diesel engine compliant with the latest emission standards, delivering exceptional climbing ability and strong driving power. The diesel-powered system eliminates the need for on-site power sources or frequent recharging, ensuring continuous, high-intensity operation around the clock.
Product Parameters：
| Model | Z10D | Z13D | Z16D |
| Measurements | |||
| Max.Working Height | 12m | 15m | 18m |
| Max.Platform Height | 10m | 13m | 16m |
| Platform Dimensions | 3.95X1.83m | 3.95X1.83m | 3.95X1.83m |
| Length-stowed | 4.2/4.81m | 4.2/4.81m | 4.2/4.81m |
| Width-stowed | 2.28m | 2.28m | 2.28m |
| Height-stowea | 2.81m | 3.03m | 3.25m |
| Height-stowed (folding guardrails) | 2.12m | 2.34m | 2.56m |
| slide-out Platform Extension Deck-Length | 1.22/1.52m | 1.22/1.52m | 1.22/1.52m |
| Ground Clearance | 0.23m | 0.23m | 0.23m |
| Wheelbase | 2.84m | 2.84m | 2.84M |
| Weight | 6850kg | 7350kg | 8850kg |
| Productivity | |||
| Max.Lift Capacity | 1150kg | 680kg | 680kg |
| Lift capacity - Extension Deck Extended | 230kg | 230kg | 230kg |
| Max.Platform Occupancy | 7 | 5 | 5 |
| Drive Speed-Stoweo | 6.3km/h | ||
| Drive Speed-Raised | 1.1km/h | ||
| Gradeability -Stowed | 0.45 | ||
| Max.WorkingAngel | 3°/3° | ||
| Turning Radius -Inside/Outside | 2.78/4.95m | ||
| Tires - Solid Non-Marking | 33X12-20 | ||
| Engine | 4TNV94L-BXPHZ | ||
| Power | 35.5Kw/2600rpm | ||
| FuelTank Volume | 115L | ||
| Hydraulic tank volume | 170L | ||
| ControlVoltage | 12V | ||
| Standards Compliance | EN280:2013+A1:2015 GB25849-2010 | ||
Construction Cases
FAQ
Q: 1. What are the clear advantages of choosing a diesel scissor lift extended platform for outdoor construction?
A: A diesel power system delivers high driving force and long continuous operation, completely independent of on-site charging conditions. Meanwhile, the extended platform significantly shortens project duration and reduces equipment wear.
Q2: How can a diesel scissor lift operate safely on slopes or uneven, muddy terrain?
A: This model is specifically designed for challenging ground conditions. First, large off-road tires and a high ground clearance allow the machine to easily navigate rough terrain. Second, before raising the platform, operators can deploy four hydraulic leveling outriggers around the chassis. These automatically self-level and firmly stabilize the machine, ensuring the entire lifting process remains perfectly horizontal and stable.
Q3: What is the load capacity of the extended platform when deployed, and what safety measures are in place?
A: The extended platform also features a high-strength structural design with clearly defined rated load capacity (typically supporting 1–2 workers plus their tools). The unit is equipped with internal tilt sensors, overload protection systems, and fall-prevention guardrails at height. If the outriggers are not properly leveled or the platform becomes overloaded, the system will trigger alarms and restrict hazardous operations, providing comprehensive safety for personnel working at height.
