Products Description

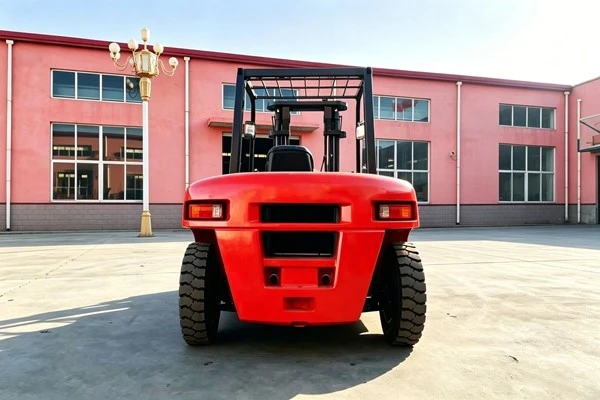

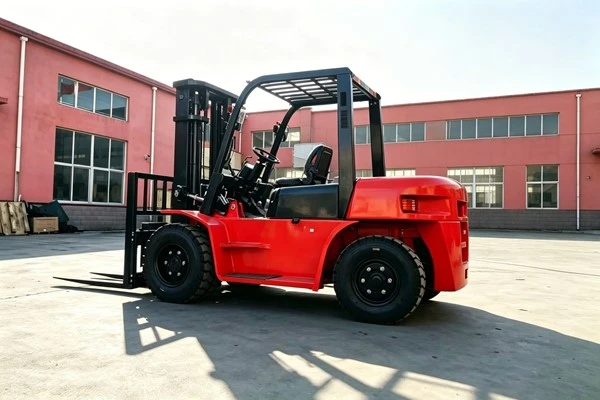

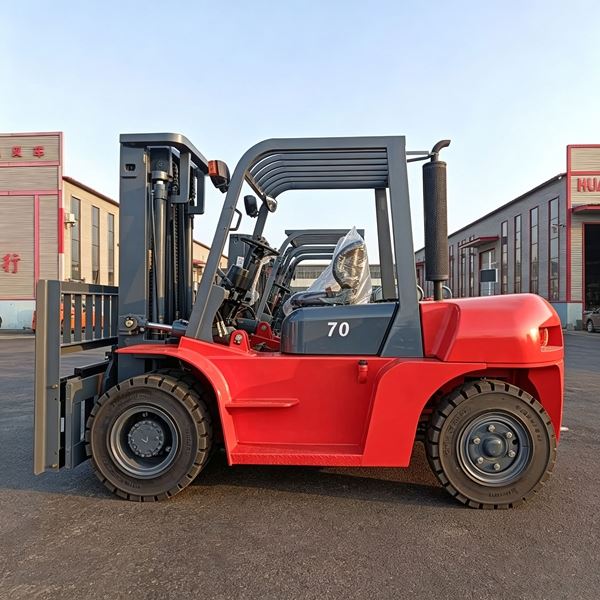

When confronted with intense heavy-load operations and harsh working conditions, the diesel big forklift is an indispensable efficient productivity tool for you. This model of big forklift is specifically designed for heavy material handling, integrating a powerful power system, a stable chassis structure and a user-friendly driving experience.
As a high-performance big forklift, the entire vehicle has undergone comprehensive structural safety upgrades. The vehicle features a high-strength steel frame and a heavy-duty chassis structure, with excellent resistance to bending and torsion. Combined with a reinforced drive axle and wide-width wear-resistant tires with front dual wheels and rear single wheel configuration, it ensures stability even under a rated load of 7 tons. Additionally, the wide-view frame significantly reduces the driving blind zone. While the high-position exhaust and the full vehicle LED lighting design further enhance operational safety.
Key Features
- Powerful engine, high efficiency, low consumption
Equipped with a high-power industrial-grade diesel engine, the big forklift has a large output torque and strong climbing ability. It complies with national emission standards.
- High-strength thickened frame and chassis
Using high-strength steel frame and heavy-duty vehicle frame structure, it has excellent resistance to bending and torsion. Reinforced drive axle and wide-width wear-resistant tires ensure it remains rock-solid even under a rated load of 7 tons.
- Outstanding hydraulic system and precise control
Equipped with high-performance hydraulic lifting and tilting system, it lifts and lowers smoothly and steadily, with agile response.
Get your exclusive quote and product brochure immediately
Would you like to know more about the detailed configuration, latest discounted prices or customization options of the 7-ton diesel forklift?
WhatsApp: [+8619803851205]
Email: [inquiry@swllift.com]
Online Consultation: Click the "Online Chat" button to communicate with our product experts immediately!
Product Parameters：
| Model | S15 | S20 | S25 | S30 | S35 | |
| Power Source | Diesel | Diesel | Diesel | Diesel | Diesel | |
| Capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 |
| Load center | mm | 500 | 500 | 500 | 500 | 500 |
| Lift height(Duplex wide-view) | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Fork size(LxWxH) | mm | 920*120*35 | 1070*120*45 | 1070*120*40 | 1070*125*45 | 1070*125*50 |
| Mast tilt angle(F/R) | Deg | 6°/12° | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
| Length to face of fork | mm | 2295 | 2600 | 2600 | 2770 | 2865 |
| Overall width | mm | 1086 | 1150 | 1150 | 1225 | 1308 |
| Mast lowered height | mm | 1995 | 1995 | 1995 | 2115 | 2175 |
| Mast extended height | mm | 3940 | 4030 | 4030 | 4160 | 4160 |
| Overhead guard height | mm | 2040 | 2070 | 2070 | 2090 | 2170 |
| Turning radius | mm | 2055 | 2310 | 2310 | 2440 | 2480 |
| Min. right angle aisle width | mm | 2150 | 2380 | 2380 | 2490 | 2530 |
| Front overhang | mm | 420 | 470 | 470 | 475 | 480 |
| Ground clearance | mm | 110 | 120 | 120 | 135 | 135 |
| Wheelbase | mm | 1400 | 1600 | 1600 | 1700 | 1700 |
| Travel (no load) | km/h | 15 | 19 | 19 | 19 | 19 |
| Lifting (full load) | mm/s | 450 | 530 | 530 | 440 | 420 |
| Gradeability(laden) | % | 20 | 20 | 20 | 20 | 20 |
| Service weight | kg | 2820 | 3590 | 3790 | 4390 | 5500 |
| Front tire | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-12PR | 28x9-15-12PR | |
| Rear tire | 5.00-8-10PR | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |
| Battery (voltage/capacity) | v/ah | (12V/80Ah) | (12V/80Ah) | (12V/80Ah) | (12V/80Ah) | (12V/80Ah) |
| Engine model | C490BPG-236 | C490BPG-236 | C490BPG-236 | A495BPG-13 | A495BPG-13 | |
| Engine rated output/r.p.m | kw | 40/2650 | 40/2650 | 40/2650 | 42/2650 | 42/2650 |
| Engine No.of Cylinder | 4 | 4 | 4 | 4 | 4 | |
| Bore x stroke | mm | 95x105 | 95x105 | 95x105 | 95x105 | 95x105 |
| Displacement | cc | 2670 | 2670 | 2670 | 2670 | 2670 |
| Fuel tank capacity | L | 60 | 60 | 60 | 60 | 60 |
