Remote Control Telescopic Boom

Remote Control Telescopic Boom

Maximum working height: 80 feet (about 24.38 meters)
Maximum horizontal extension: 71 feet (about 21.64 meters )
Carrying capacity: 227 kg
Rotation angle: 360 degrees continuous rotation
Engine type: diesel engine
Price range: 45000-75000USD
Send Inquiry
Description
Technical Parameters
Construction Cases
Product Overview:



The remote control telescopic boom is an efficient working equipment that integrates advanced technology. Through remote control operation, users can safely control the equipment at a distance and flexibly cope with complex working environments. Its straight arm design provides a larger working height and coverage, ensuring efficient completion of tasks. High-strength materials and precision manufacturing processes ensure the durability and stability of the equipment. In addition, the platform is equipped with multiple safety protection systems such as overload alarm and tilt protection to ensure the safety of operators. With its high efficiency, flexibility and safety, the remote control telescopic boom has become the best choice for various aerial operations.



Advantages & Features:



1. Highly flexible: The straight arm design allows for free horizontal and vertical movement when working at high altitudes.

2. High load capacity: With a high load capacity, it can carry more tools and materials and improve work efficiency.

3. Strong and durable: The remote control telescopic boom adopts high-strength materials and advanced manufacturing technology to ensure the durability and long life of the equipment.

4. Energy saving and environmental protection: The use of environmentally friendly power system reduces the impact on the environment and meets the requirements of modern green construction.

5. Intelligent control: Advanced intelligent control system provides higher operating accuracy and lower failure rate.



Hot Tags: remote control telescopic boom, China remote control telescopic boom manufacturers, suppliers, factory, telescopic boom lift platform rotation, telescopic boom lift financing, telescopic boom lift traction instructions, telescopic boom lift boom extension, telescopic boom lift storage solution, telescopic boom lift repair manual

Product Parameters:



Model S28D S32D S38D S42D S46D S56D
Max Working Height 30m 34m 40.4m 44m 48m 58m
Max Platform Height 28m 32m 38.4m 42m 46m 56m
Max Operating Radius 20.6m 21.4m 24m 24m 23.6m 26m
Platform Dimensions (L*W) 2.44*0.91m 2.44*0.91m 2.44*0.91m 2.44*0.91m 2.44*0.91m 2.44*0.91m
Machine Weight 16800kg 19250 kg 22900 kg 24600kg 23110 kg 27500kg
Load Capacity 300kg/480kg 300kg/480kg 300kg/480kg 300kg/480kg 300kg/480kg 300kg/480kg
Power 53kw/2200rpm 54kw/2400rpm 54kw/2400rpm 53kw/2200rpm 54kw/2200rpm 74kw/2400rpm
Fuel Tank Volume 151L 151L 151L 151L 151L 200L
Control Voltage 12V 12V 12V 12V 12V 24V



Model S18 S20 S24Li S26Li
Max Working Height 20.5m 21.6m 26.2m 28.8m
Max Platform Height 18.5m 19.6m 24.2m 26.8m
Max Working Radius 13.2m 14.5m 20m 22m
Platform Dimension (L*W) 1.8*0.75m 1.8*0.75m 2.4*0.9m 2.4*0.9m
Machine Weight 8520kg 9100kg 15100kg 16600kg
Load Capacity 300kg 300kg 300kg/450kg 300kg/450kg
Driving Speed (Stowed) 4.8km/h 4.8km/h 5.5km/h 5.5km/h
Battery Power 48V/420Ah 48V/420Ah 80V/500Ah 80V/500Ah
Pump Motor Power 12kw 12kw 30kw 7kw
Driving Motor Power 3.3kw 3.3kw 5.2kw 5.2kw
Control Voltage 12V 12V 12V 12V
LFP Battery Optional Optional Standard Standard
Power Plus Generator Optional Optional Optional Optional
Insulated Platform Optional Optional Optional Optional

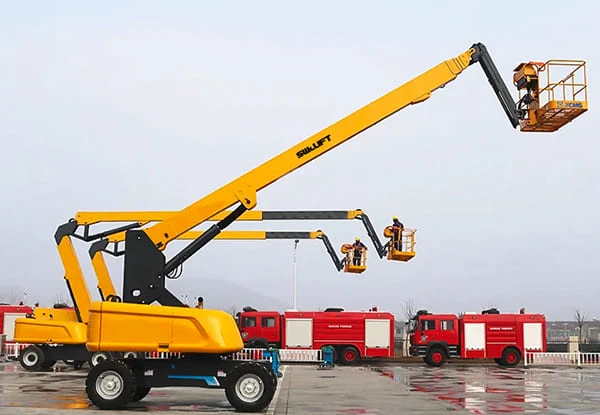

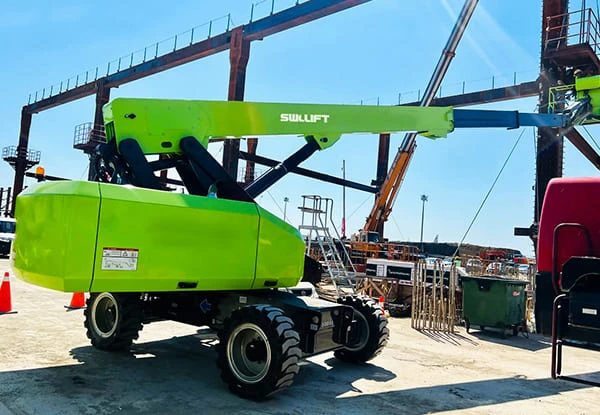

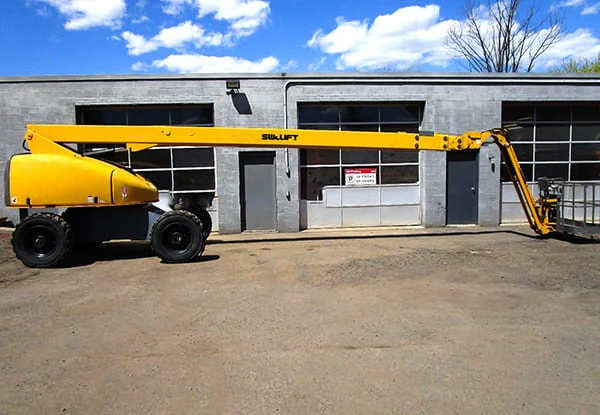

Construction Cases:



product-600-415
product-600-415
product-600-415



Why Choose Us?



1. Technical strength: We have a first-class R&D team and advanced production equipment to ensure that our products are technologically advanced.

2. Comprehensive solutions: We provide one-stop services from consulting, design, manufacturing to installation and maintenance.

3. Customer customization: We tailor the most suitable lifting equipment solutions according to the specific needs of customers.

4. Efficient delivery: We have a complete supply chain management system to ensure on-time delivery.

5. Reputation guarantee: We have accumulated a good reputation and credibility over the years, and we are your trusted choice.



FAQ



1. Does your company provide OEM service?

We are very happy to provide you with OEM customized services to ensure that the products meet your brand and needs.



2. How long does it take to ship?

We will process your order as soon as possible and arrange shipment within 14 to 25 working days after receiving payment.



3. What kind of after-sales service do you provide?

We provide 24/7 technical guidance service to answer various questions you may have during use.



4. What kind of quality assurance do you provide?

We strictly control quality during the production process and take multiple measures to ensure the reliability and stability of the product.



5. Which regions do you export your products to?

Our products are exported to many regions including Asia, the Middle East, Europe, Africa, South America and Oceania.



6. What are the payment methods?

In order to provide a variety of payment methods, we support T/T, wire transfer, L/C, letter of credit, D/P, collection, D/A, acceptance, MoneyGram, remittance, credit card, PayPal, Western Union, cash, etc.



7. What are the trade terms?

We support FOB, FOB, CFR, CIFEXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DDU, DAF, DES, etc.



8. How long is the warranty period of the machine?

The warranty period of the machine is one year.



9. Do you have your own distributors?

We are currently actively expanding overseas markets and establishing cooperation with global distributors. If you are interested in becoming our distributor, please feel free to contact us for more information.
