Product Overview：
Swllift specializes in researching, developing, and promoting aerial work platforms and has become a leading manufacturer in China. With over ten years of experience in high quality high quality articulating man lifts, Swllift has gained unanimous recognition from the market and customers. The high quality high quality articulating man lift is a top seller both domestically and internationally due to its stable performance and reliable quality.
To meet increasing demand both domestically and internationally, Swllift has begun production of their intelligent assembly line for high quality high quality articulating man lifts. The company has implemented a lean production management system to improve product quality through standard control, quality control, process control, and other means.

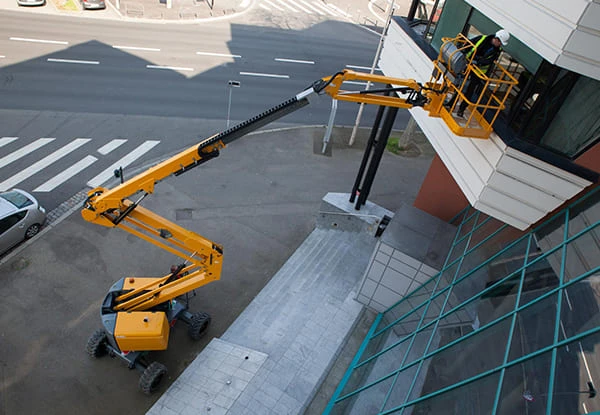

The Swllif high quality articulating man lift boasts high passability and flexible operation. It has the smallest turning radius among similar models in the industry and a compact design, allowing it to easily navigate narrow spaces and aisles. Additionally, it features a folding arm, flying arm, slewing and steering mechanism, enabling multi-directional and multi-angle operation in complex environments. The crane is equipped with a folding arm, flying arm, slewing mechanism, and steering mechanism, allowing for multi-directional and multi-angle operation in complex environments.
Advantages & Features：
1. Safe and reliable:
Standard dual-channel sensors, safe and reliable.
Electric emergency power system, providing more security.
The whole machine components protection level IP65 or above, high protection level.
2. Intelligent and efficient:
Compound action, intelligent and efficient.
Compact structure, zero tail swing, more adaptable to narrow space operation.
Four-wheel drive, climbing ability up to 40%, strong passability.
High-power charger and large-capacity power battery, ultra-long range.
3. Energy-saving and comfortable:
Boom weight down, energy-saving and smooth.
Limit position deceleration, center-mounted boom, smooth movement, small shaking; optimized electronic control algorithm, to achieve precise power output.
4. Green environmental protection:
Standard lithium batteries, low maintenance costs, short return on investment cycle.
No emissions, no noise, to meet the indoor and outdoor working conditions.
5. Standard configuration:
Platform working light
Strobe light
Load sensing system
Electro-hydraulic proportional control
Electric emergency descent system
Emergency stop system
Anti-crush device
Remote Fault Diagnosis System
Automatic braking system
Tilt protection system
Overload protection
Full Motion Warning
Hot Tags: high quality articulating man lift, China high quality articulating man lift manufacturers, suppliers, factory, high quality articulating man lift, articulated boom lift, articulating boom lift with diesel power, good quality 80 ft articulating boom lift, electric articulating boom lift, self propelled 45ft articulating boom lift
Product Parameters：
| Diesel Articulating Boom Lift Models and Parameters | |||||
| Model | S20D | S24D | S26D | S30D | S38D |
| Max Working Height | 22m | 26.2m | 28m | 32m | 40.1m |
| Max Platform Height | 20m | 24.2m | 26m | 30m | 38.1m |
| Max Spanning Height | 9.4m | 10.2m | 10.2m | 12.2m | 19.5m |
| Max Operating Radius | 12m | 15.4m | 17.28m | 20.2m | 21.6m |
| Platform Dimensions (L*W) | 1.83*0.76m | 2.44*0.91m | 2.44*0.91m | 2.44*0.91m | 2.44*0.91m |
| Machine Length (Stowed) | 8.54m | 10.65m | 11.7m | 13.1m | 14.2m |
| Machine Width (Stowed) | 2.38m | 2.48m | 2.58m | 2.49m | 2.49m |
| Machine Height (Stowed) | 2.55m | 2.85m | 2.97m | 3.22m | 3.17m |
| Wheel Base | 2.4m | 3m | 3m | 3.66m | 3.96m |
| Ground Clearance (Center) | 0.4m | 0.4m | 0.43m | 0.43m | 0.43m |
| Machine Weight | (2WD) 9380kg | 16300kg | (2WD) 16800kg | 18000kg | 24500kg |
| (4WD) 9500kg | (4WD) 17000kg | ||||
| Load Capacity | 230kg | 230kg | 230kg | 230kg/480kg | 230kg/480kg |
| Power | 35.5kw/2400rpm | 43kw/2200rpm | 54kw/2400rpm | 54kw/2400rpm | 54kw/2400rpm |
| Control Voltage | 12V | 12V | 12V | 12V | 12V |
| Electric Articulated Boom Lift Models and Parameters | ||||||
| Model | S09 | S11 | S14 | S16 | S18 | S20 |
| Max Working Height | 11.5m | 12.52 m | 16m | 17.7m | 20.2m | 22.5m |
| Max Platform Height | 9.5m | 10.52 m | 14m | 15.7m | 18.2m | 20.5m |
| Max Crossing Height | 4.5m | 4.65 m | 7.0m | 7.3m | 8.0m | 9.4m |
| Max Working Radius | 6.2m | 6.5 m | 7.5m | 8.9m | 11.1m | 11.8m |
| Rated Load Capacity | 200kg | 200 kg | 230kg | 230kg | 230kg/350kg | 230kg/350kg |
| Ground Clearance (Center) | 0.14m | 0.14 m | 0.25m | 0.2m | 0.3m | 0.3m |
| Platform Rotation | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° |
| Turntable Rotation | 355° | 355° | 355° | 355° | 355° | 355° |
| Driving Speed (Stowed) | 4.8km/h | 4.8 km/h | 5.1km/h | 5.0km/h | 4.8km/h | 4.5km/h |
| Gradeability (Stowed) | 0.35 | 0.35 | 0.3 | 0.3 | 0.45 | 0.4 |
| Machine Weight | 4800kg | 5200 kg | 5960kg | 6630kg | 9100kg | 10000kg |
| Battery | 48V/320Ah | 48V/320Ah | 48V/320Ah | 48V/320Ah | 48V/420Ah | 48V/420Ah |
| Control Voltage | 24V | 24V | 24V | 24V | 24V | 24V |
| Pump Motor | 4kw | 4kW | 4kw | 4kw | 12kw | 12kw |
